G-Tech Power insists on customer first, provide competitive intelligent energy solutions and services, and continuously create maximum value for customers. Your attention makes my motivation!
Line Interactive Simulated Sine wave UPS with Smart USB charger for
PC is available with 600VA, 800VA, 1200VA for option. These
uninterrupted power suppy features with long life lifeP04 lithim
battery in, can provide power for your home devices via a USB Port
directly, increases UPS availability by allowing USB charging
function.
600va/ 800va/ 1200va
55wh/ 75wh/ 150wh
110/120Vac or 220/230/240Vac
110/120Vac or 220/230/240Vac
Line Interactive Simulated Sine wave Smart UPS with USB charger
with Lithium battery for home Appliances 600VA 800VA 1200VA
Line Interactive Simulated Sine wave UPS with Smart USB charger for
PC is available with 600VA, 800VA, 1200VA for option. These
uninterrupted power suppy features with long life LiFePO4 lithim
battery in, can provide power for your home devices via a USB Port
directly, increases UPS availability by allowing USB charging
function.
Suitable for the PC,router,POS machine communication
processor,industrial products which for the
enterprises,government,scientific research,traffic,national
defense,information and education industries.
Features:
Feature
1> CPU controlled
2> Auto re-starts when AC recovers
3> Silence setup
4> Automatic charging (offline charging)
5> Battery low voltage protection
6> Overload & short circuit protection
7> Wide input voltage range
8> Built-in BMS (Battery Management System)
9> Over temperature alarm and protection
Technical Parameters:
MODEL
(metal case)VX-650Li
(metal case)VX-800Li
(metal case)VX-1200Li
Capacity
650VA
800VA
1200VA
INPUT
Input voltage
110/120Vac or 220/230/240Vac
Input voltage range
84-145Vac / 145-290Vac
Frequency range
45-65Hz
OUTPUT
Output voltage
110/120Vac or 220/230/240Vac
Output voltage range
102-132Vac / 200-255Vac
Output frequency
60±0.5Hz or 50±0.5Hz (Auto sensing )
Output wave form
PWM (Batt.mode)
Transfer time
Typical 2-6ms, 10ms max
BATTERY
QTY. & capacity of battery
315W/55WH
410/75WH
600W/150WH
Charging period
4-6 hours recover to 90% capacity
backup time
100W backup time ≥27min is equivalent to 7AH
100W backup time ≥33min is equivalent to 9AH
200W backup time ≥33min is equivalent to 9AH X2
battery type
LiFePO4
cycles life
lead acid battery 300 cycles / LiFePO4 battery 1000 cycles
charging time
lead acid battery 8 hours / LiFePO4 battery 4 hours
PROTECTION
Full protection
BMS & temperature protection & Low voltage & overload & short
circuit protection
PHYSICAL
Net weight(kg)
3.0
3.3
5.0
Unit dimension(mm)
225*85*141
305*85*141
package size(mm)
300*278*440
380*278*440
ENVIRONMENT
Environment of performance
Temperature 0℃-40℃, Humidity 20%-90%
Noise level
≤40dB(1m)
MANAGEMENT
LCD or LED, RJ45/11 & USB
optional
Performance characters:
1. Wide range of input voltage
The UPS can offer normal and stable service voltage under its input
voltage range. When the input voltage is out of its range the
machine will switch to battery mode automatically to keep the
output power in order to protect the equipment, such as computers,
ensure they will not be damaged by the over high or over low
voltage, users can continue the operation of equipment for a while
or save the data on computers while the power network is abnormal.
2. Wide range of AVR(Automatic voltage regulation)
In the product's input voltage range and under 3 steps of
intelligent AVR function, it can provide a stable output voltage.
3. Automatic self detection when UPS on(LED).
Before the UPS on, red, yellow, blue LED will light up two times by
cycle turns, after self detection UPS switch to AC mode/battery
mode or working mode.
4. Silence function
In the "battery mode", shortly press the switch to turn off the
buzzer. But the battery is about to run out or the load is too
heavy, the buzzer sound cannot be muted.
5. Overload protection
In the battery mode, output voltage turn down correspondingly when
it is overload, after the capacity of load is lower than the rated
power then output voltage will back to rated value, it ensures the
UPS will not shut down by abrupt overload which caused by surging
current during the computer is working and other equipment is
added.
6. Short circuit protection
When the mis-operation caused the load short circuit or computer
failure (such as power tube breakdown of switch) cause short
circuit, the UPS will shutdown automatically for protection.
7. The low current switch
This UPS adopts low current switch to extend the service life which
is longer than conventional battery and high current switch in AC
current path.
8. Automatic charging
There are two charging mode, charging time is faster than ordinary
charging mode, higher efficiency, and greatly prolonging the
service life of the battery.
9. With a bypass output
Independent bypass output socket for external printers or scanners
of computer peripherals, with surge protection of the load.
G-Tech Power Co., Ltd. was established in 2002, located at Foshan,
Guangdong province. We are a professional manufacturer of high
quality UPS (Uninterruptible Power Systems) in China. We specialize
in developing, manufacturing and operating the most reliable,
manageable and the safest UPS, inverter and AVR (voltage regulator)
products.

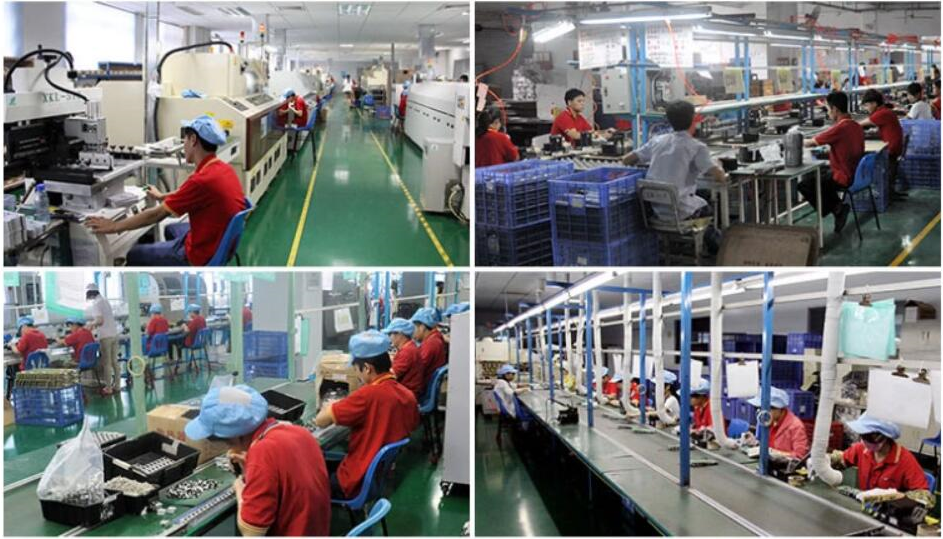

The factory covers a working area of nearly 20,000 square meters,
has more than 500 professional staff (including 30 R&D

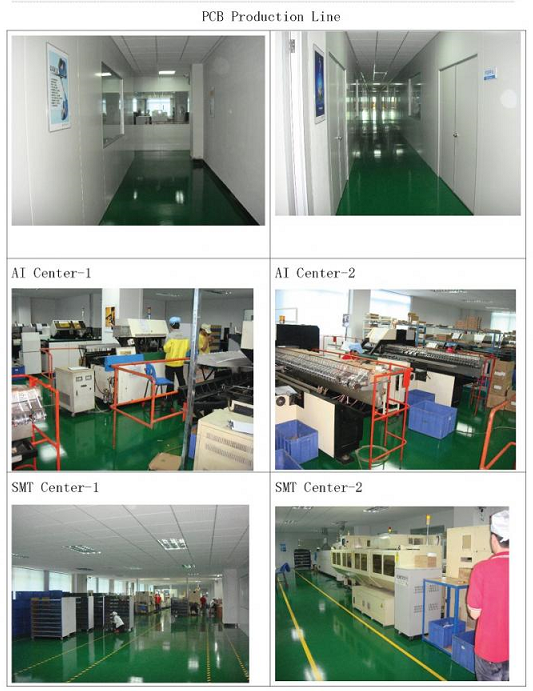

personnel) and 33 sets of fully automatic SMT lines, more than 10
sets of automatic insertion equipment, ICT PCB testing equipment,
ATE automatic testing center and aging workshop for all products.
OEM services are provided for customers in many areas, such as
South America, Europe, Russia, India, Africa and some other
countries and regions. We are always qualifying ourselves in order
to meet the requirements of customers, and we gain more repeat
orders and admiration from them.
After 20 years of efforts, we have been extended to more and
more consumers. Our products are widely used in finance,
securities, energy, telecommunications, transportation,
communications, traffic, industrial enterprises, data center and
home usage by personal purpose.
We warmly welcome friends from all over the world to explore and
negotiate with us, To build a mutual benefit and win-win friendly
cooperate relationship!
