Residential Solar LiFePO4 Battery pack 48V 100AH

G-TECH POWER GROUP
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Residential Solar LiFePO4 Battery pack 48V 100AH from wholesalers

    Buy cheap Residential Solar LiFePO4 Battery pack 48V 100AH from wholesalers
    • Buy cheap Residential Solar LiFePO4 Battery pack 48V 100AH from wholesalers
    • Buy cheap Residential Solar LiFePO4 Battery pack 48V 100AH from wholesalers

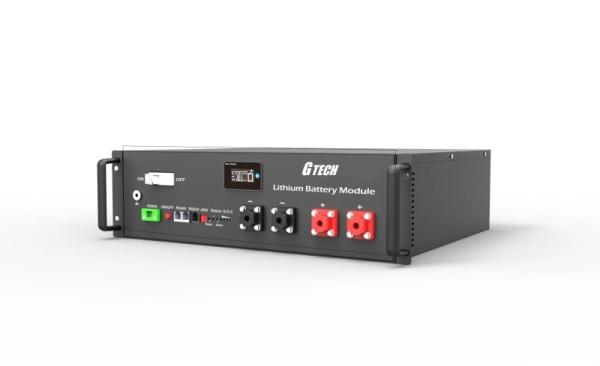

    Residential Solar LiFePO4 Battery pack 48V 100AH

    Ask Lasest Price
    Brand Name : OEM
    Model Number : LiFePO4
    Certification : CE ROHS
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 1000000pcs
    Delivery Time : around 15 working days
    • Product Details
    • Company Profile

    Residential Solar LiFePO4 Battery pack 48V 100AH


    Residential Solar LiFePO4 Battery pack 48V 100AH

    Lithium Battery Pack 100AH 200AH Manufacturer


    Description:

    G-tech LiFePO4 battery is a high-tech product developed for the requirements of new backup power supply and household renewable energy storage. Built-in intelligent BMS to protect the battery pack at any time and prolong its service life, modular design enables parallel installation for larger power back up, all manufactured with A grade cells.



    Main Features:
    1. Cells cycle times 6000 cycles(+25%C 0.2C 80% DOD)

    2. Long lifespan: 5 years warranty, 10 years life design
    3. 4U rack-mount chassis design is easy for parallel expansion and maintenance
    4. Smart BMS system to optimize the performance
    5. Communication: RS485/SNMP/Wifi/Bluetooth, Compatible with different brand of solar inverter and chargers
    6. All around protection: such as SOC/SOH/ Anti-theft function etc
    7. High discharge rate currents, suitable for on-grid or off-grid solar system and other loads
    8. Maximum of 16 battery packs can be connected in parallel
    9. With front display to know effectively the status of the batteries

    10.Communicate with mainstream inverter: Growatt/Voltronic/GOODWE/Pylontech/Kstar/MUST etc.


    MODEL #LFP 24-100LFP 48-50LFP 48-100
    SPECIFICATION
    Battery TypeLiFePO4LiFePO4LiFePO4
    Battery Model25.6V100AH51.2V50AH51.2V100AH
    Nominal Capacity(25℃,0.2C)WH2560Wh2560Wh5120Wh
    Adjustable working voltage(Vdc)22.4~29.2V44.8~58.4V44.8~58.4V
    Folat Charge Voltage(Vdc)28V56V56V
    Max.Continuous discharge current(A)100100100
    Max.pulse discharge current(A)150A 1Sec.100A 1Sec.150A 1Sec.
    Max.Continuous charge current(A)10050100
    Cycle life(+25℃ 0.2C 80% DOD)>5000 Cycles>5000 Cycles>5000 Cycles
    Cell Equalizer Current(A0.1~5A Max.(optional)0.1~5A Max.(optional)0.1~5A Max.(optional)
    TerminalM6
    Storage duration6 months at 25℃
    Safety standardIEC62619,UN38.3,MSDS,CE
    Communication functionRS484/UART/SNMP/Wifi/Bluetooth
    PROTECTION
    ProtectionOvercharge protectionOverdischarge protectionOvercurrent protection Shortcircuit protectionOvertemperature protection
    AMBIENT
    Noise(dB)<40dB(1 meter)
    Working temperature-20℃~+60℃
    Humidity0~95%(no condensation)
    Altitude(m)<3000

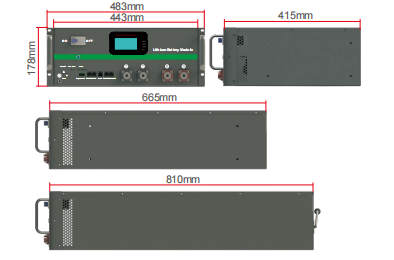

    DIMENSION
    L*W*H( size)mmL405*W483*H178mmL655*W483*H178mm
    L*W*H(package size)mmL440*W518*H213mmL690*W518*H213mm
    Net Weight(Kg):Approx.35kgApprox.72kg
    Gross Weight(Kg):Approx.39kgApprox.78kg

    FAQ


    Q1: Are you trading company or manufacturer ?

    A: We G-Tech Energy company are factory which has over 21+ years experience in Guang Dong,china.


    Q2: Can I have a sample order?

    A: Yes, we welcome sample order to test and check quality. Customized is available.


    Q3: How to proceed an order?

    A: 1. Let us know your requirements or application. 2. We quote according to your requirements or our suggestions. 3. Client confirms the samples and places deposit for formal order. 4. We arrange the production.


    Q4: Where can I get the price?

    A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we’ll regard your inquiry priority


    We provide one-stop battery power solution, including cell selection, battery pack design, PCM/BMS design, battery pack assembly, OEM Packing and after sales service.
