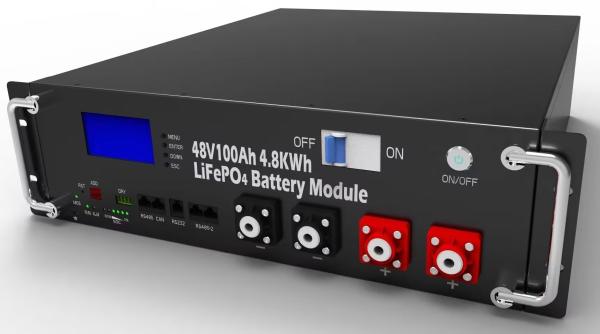

    Solar Energy Storage System 48V 100Ah LiFePO4 Battery Telecom Base Station Backup

    Ask Lasest Price
    Brand Name : GTECH/OEM
    Model Number : 48V 100Ah
    Certification : CE, ROHS, IEC, UN38.3, MSDS
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100000pcs per month
    Delivery Time : around 20 working days
    • Product Details
    • Company Profile

    Solar Energy Storage System 48V 100Ah LiFePO4 Battery Telecom Base Station Backup

    Solar Energy Storage System 48V 100Ah Telecom Base Station Backup LiFePO4 Battery

    Lithium LiFePO4 Battery Pack 100AH 150AH 200AH Manufacturer


    Description:

    G-tech Lithium battery is a high-tech product developed for the requirements of new backup power supply and household renewable energy storage. Built-in intelligent BMS to protect the battery pack at any time and prolong its service life, modular design enables parallel installation for larger power back up, all batteries manufactured with A grade cells, 10 years life span design.


    Main Features:
    1. Cells cycle times 6000 cycles(+25%C 0.2C 80% DOD)

    2. Long lifespan: 5 years warranty, 10 years life design
    3. 4U rack-mount chassis design is easy for parallel expansion and maintenance
    4. Smart BMS system to optimize the performance
    5. Communication: RS485/SNMP/Wifi/Bluetooth, Compatible with different brand of solar inverter and chargers
    6. All around protection: such as SOC/SOH/ Anti-theft function etc
    7. High discharge rate currents, suitable for on-grid or off-grid solar system and other loads
    8. Maximum of 16 battery packs can be connected in parallel
    9. With front display to know effectively the status of the batteries

    10.Communicate with mainstream inverter: Growatt/Voltronic/GOODWE/Pylontech/Kstar/MUST etc.


    MODEL #LFP 24-100LFP 48-50LFP 48-100
    SPECIFICATION
    Battery TypeLiFePO4LiFePO4LiFePO4
    Battery Model25.6V100AH51.2V50AH51.2V100AH
    Nominal Capacity(25℃,0.2C)WH2560Wh2560Wh5120Wh
    Adjustable working voltage(Vdc)22.4~29.2V44.8~58.4V44.8~58.4V
    Folat Charge Voltage(Vdc)28V56V56V
    Max.Continuous discharge current(A)100100100
    Max.pulse discharge current(A)150A 1Sec.100A 1Sec.150A 1Sec.
    Max.Continuous charge current(A)10050100
    Cycle life(+25℃ 0.2C 80% DOD)>5000 Cycles>5000 Cycles>5000 Cycles
    Cell Equalizer Current(A0.1~5A Max.(optional)0.1~5A Max.(optional)0.1~5A Max.(optional)
    TerminalM6
    Storage duration6 months at 25℃
    Safety standardIEC62619,UN38.3,MSDS,CE
    Communication functionRS484/UART/SNMP/Wifi/Bluetooth
    PROTECTION
    ProtectionOvercharge protectionOverdischarge protectionOvercurrent protection Shortcircuit protectionOvertemperature protection
    AMBIENT
    Noise(dB)<40dB(1 meter)
    Working temperature-20℃~+60℃
    Humidity0~95%(no condensation)
    Altitude(m)<3000
    DIMENSION
    L*W*H( size)mmL405*W483*H178mmL655*W483*H178mm
    L*W*H(package size)mmL440*W518*H213mmL690*W518*H213mm
    Net Weight(Kg):Approx.35kgApprox.72kg
    Gross Weight(Kg):Approx.39kgApprox.78kg

    Charge and Discharge Curve
