    Line Interactive PWM UPS Power Supply

    Ask Lasest Price
    Brand Name : G TECH
    Model Number : 500va to 3000va
    Certification : CE, ROHS
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200000PCS per month
    Delivery Time : 3-4 weeks
    • Product Details
    • Company Profile

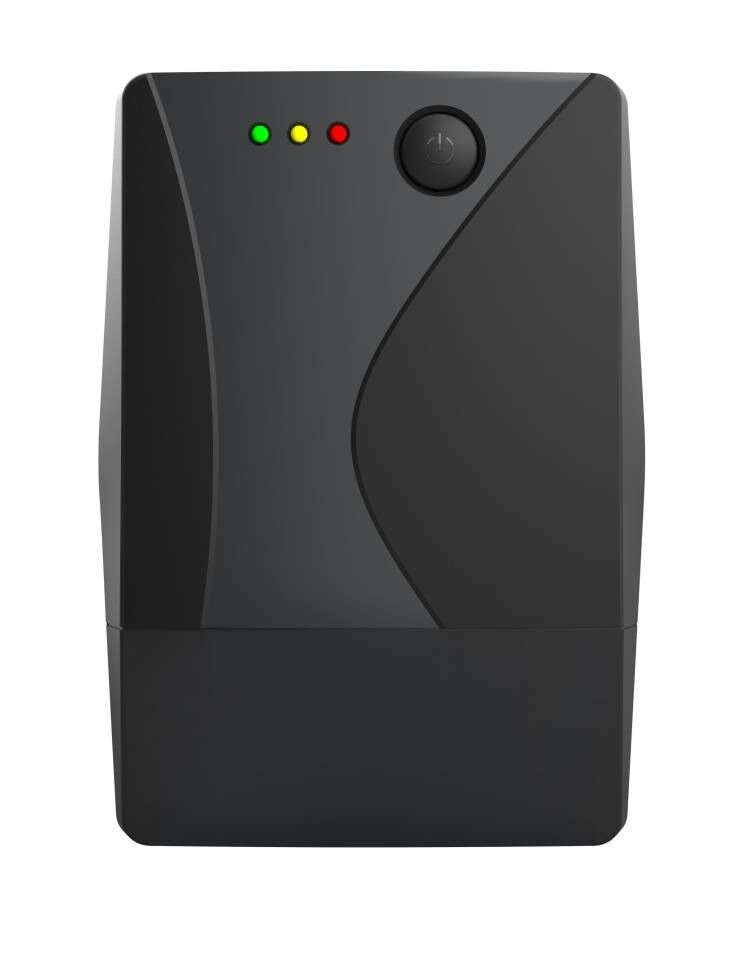

    Line Interactive PWM UPS Power Supply

    Line Interactive UPS 600va to 3000va, UPS power supply for home, microtek home UPS


    Line interactive offline UPS V series for home appliances is hot sale Uninterrupted Power Supply Unit, with PWM output and design for home use, including power 500VA/300W, 650VA/360W, 850VA/480W, 1050VA/525W, 1500VA/900W, 3000VA/1800W for option.


    Feature:

    1. CPU controlled

    2. Auto re-starts when AC recovers

    3. Silence setup

    4. Automatic charging (offline charging)

    5. Battery low voltage protection

    6. Overload & short circuit protection

    7. Wide input voltage range


    Application:

    Suitable for the PC, router, POS machine communication processor, industrial products which for the enterprises, government, scientific research, traffic, national defense, information and education industries.


    UPS Specification:

    Model #

    VP-500

    VP-650

    VP-800

    VP-1000

    VP-1200

    VP-1500

    Capacity

    500VA/300W

    650VA/390W

    800VA/480W

    1000VA/600W

    1200VA/720W

    1500VA/900W

    AVR

    No (can add)

    3 steps of AVR, CPU controlled

    INPUT

    Input voltage range

    220V:175~265±5Vac

    220V:145~290Vac±5Vac

    110V: 90~132±5Vac

    110V: 85~150Vac±5Vac

    Input frequency range

    50Hz / 60Hz (Auto sensing)

    OUTPUT

    Output voltage range

    220V: 175~265±5Vac

    220V:200~255Vac

    110V: 90~132±5Vac

    110V: 102~132Vac

    Output frequency (DC mode)

    50±0.5Hz / 60±0.5Hz

    Wave form

    PWM (DC Mode)

    Transfer time

    Typical 2~6ms, Max.10ms.

    BATTERY

    QTY & capacity of battery

    1 pc*12V4.5Ah

    1 PC*12V7Ah

    1 pc*12V9Ah

    2 pcs*12V7Ah

    2 pcs*12V7Ah

    2 pcs*12V9Ah

    Charging period

    4~6 hours recover to 90% capacity

    PROTECTION & FUNCTION

    PROTECTION

    1. Battery low voltage protection
    2. Overload protection
    3. Short circuit protection

    FUNCTION

    1. Auto re-starts when AC recovers
    2. Silence setup
    3. Automatic charging (offline charging)

    MANAGEMENT

    RJ45/11 & USB

    Refer to customers' requires.


    This series of Line interactive offline UPS V series is specifically designed for PC. It applies CPU integrated control technology and SMD(Surface Mount Deices)technology, which makes it perform satisfactorily and pleasing to the eye. It is an indispensable companion of PC, router and POS machines.
