    Single Phase 220V 100W PWM UPS

    Ask Lasest Price
    Brand Name : G-Tech
    Model Number : V-
    Certification : CE ROHS
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000000pcs
    Delivery Time : 7-25workdays
    Price : Negotiation
    • Product Details
    • Company Profile

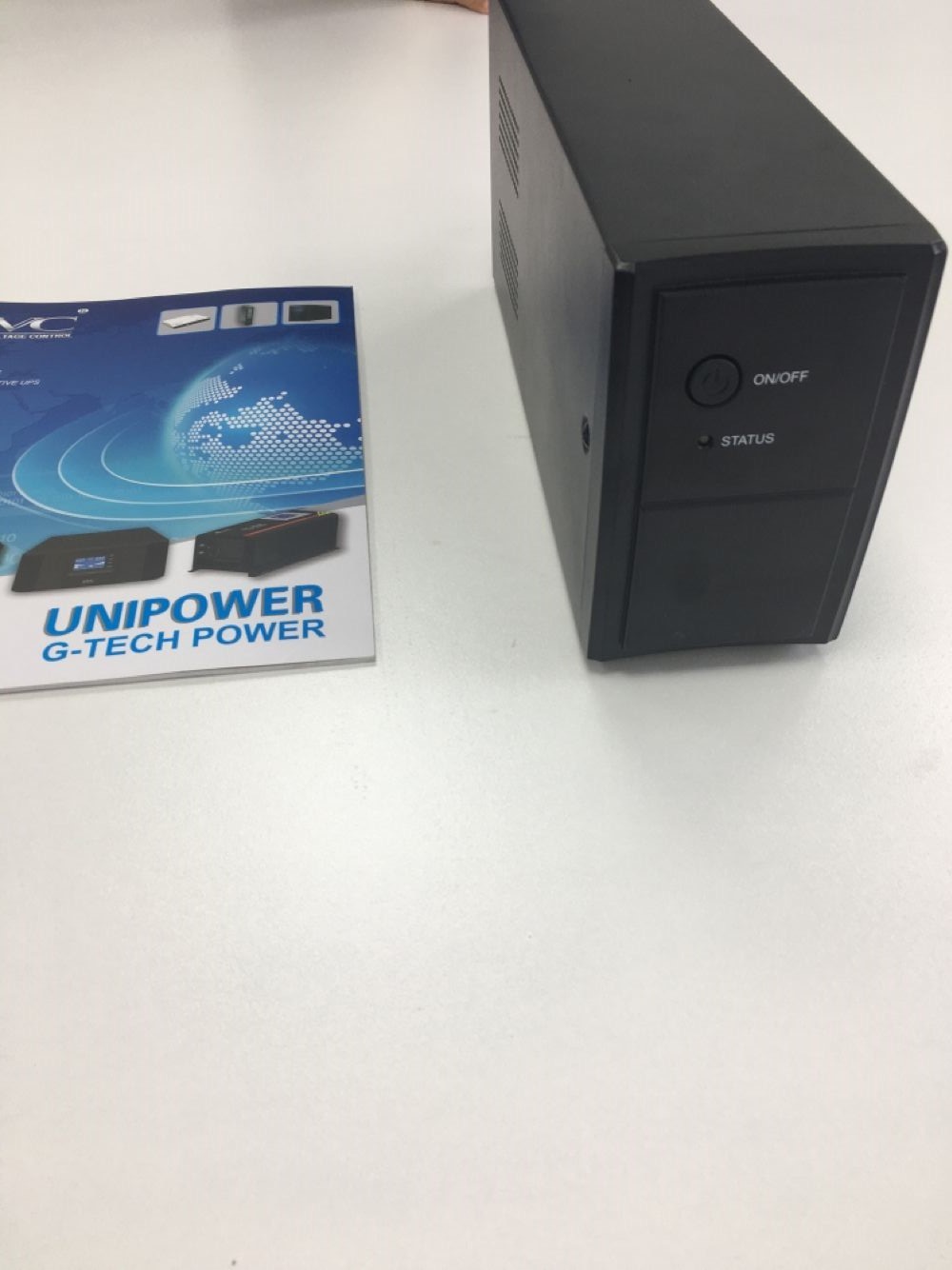

    Single Phase 220V 100W PWM UPS

    Single Phase 220V 100W PWM UPS


    UPS 100W 500W 1000W 1500W Offline UPS 220V LED Display Power Supply


    This series of UPS appllies CPU integrated technology,which allows UPS to response promptly and accurately when power outage,high or low voltage,surge,transient or spike occurs while its surge protection port provides protection for special external devices,such as printers and so on.It posses automatic startup function,automatic voltage regulation function and a wide range of input voltage,so it is applicable to all kinds of electric power enviroment. In addition,its design is humanized and elegant with LED of LCD display,those are two alternatives.


    Specification

    MODELV-525V-625
    Capacity500VA/300W600VA/360W
    INPUT
    Input Voltage110/120Vac or 220/230/240Vac
    Intput Voltage Range90~132Vac/175~265Vac85~150Vac/145~290Vac
    Frequency Range45~65Hz
    OUTPUT
    Output Voltage110/120Vac or 220/230/240Vac
    Output Voltage Range90~132Vac/175~265Vac102-132Vac/200~255Vac
    Output Frequency60±0.5Hz or 50±0.5Hz(Batt.Mode)
    Output Wave FormPWM(Batt.Mode)
    Transfer TimeTypical(2-6ms),10ms max
    BATTETRY
    Qty.& Capacity of Battery12V/4AH*1pc12V/7AH*1pc
    Charging Period4-6hours recover to 90% capacity
    PROTECTION
    Full ProtectionLow Voltage &overload&short circuit protection
    PHYSICAL
    Net Weight(kg)4.45
    Unit Dimensions(mm)255*98*140300*95*140
    ENVIRONMENT
    Environment of PerformanceTempreture 0℃-40℃,Humidity 20%-90%
    Noise level≤40dB(1m)
    MANAGEMENT
    LCD or LED,RJ45/11&USBOptional

    Filed of application

    Suitable for the PC,router,POS machine communication processor,industrial products which for the enterprise,goverment,scientific research ,traffic,national defense,information and aducation industries


    Feature

    Auto re-starts when AC recovers


    Slience steup


    Automatic charging(offline charging)


    Battery low voltage protection


    Overload & short circuit protection


    CPU controlled


    Optional RJ 45/11 & USB port


    Wide input voltage range
