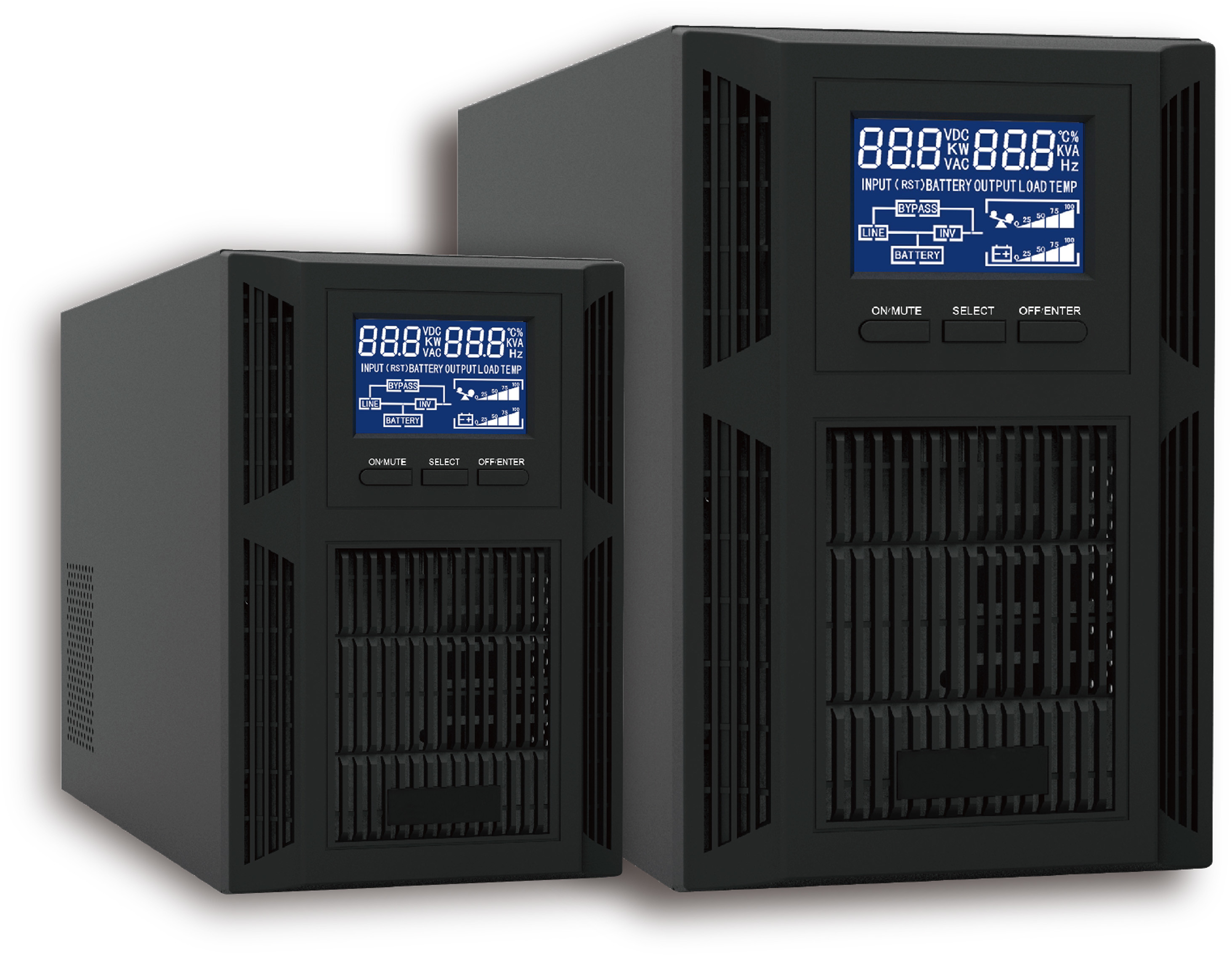

    PF0.9 Online G Tech UPS Power Supply 0ms Transfer Time With Double Conversion

    Ask Lasest Price
    Brand Name : G-Tech
    Model Number : 1 kVA ~ 10 kVA (3:1)
    Certification : CE ROHS
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10000pcs
    Delivery Time : 7-25workdays
    Price : Negotiation
    • Product Details
    • Company Profile

    PF0.9 Online G Tech UPS Power Supply 0ms Transfer Time With Double Conversion

    Online High Frequency

    Specifications

    MODELPT-1KPK-1KLPT-2KPT-2KLPT-3KPT-3KL
    Capacity1000VA/9000W2000VA/1800W3000VA/2700W
    INPUT
    Voltage rangeFull load:160Vac ±5%-300Vac±5%; no-load:110Vac±-300Vac±5%
    Power factor0.9
    Frequency range40Hz-70Hz
    PhaseSingle phase with ground
    OUTPUT
    Output voltage220Vac
    AC Voltage regulation±1% (Batt.Mode)
    Frequency range47-53Hz of 57-63Hz(Synchronized range)
    Frequency range50±0.25Hz or 60±0.3Hz(Batt.mode
    Overload

    >100%<110%:warning

    >110%<130%:UPS shuts down after 1 minute in battery mode,or transfer to by pass when the utility is normal

    >130%:UPS shuts down immediately in battery mode,or transfer to bypass when the utility is normal.

    Current crest ratio3:1
    Harmonic distortion≤6% THD(non-linear load)
    Transfer timeAC Mode to Batt Mode:0ms; Inverter to Bypass:4ms(Typical)
    Wave form(Batt.Mode)Pure Sinewave
    EFFICIENCY
    AC Mode≥85%≥88%
    Battery Mode≥83%≥85%
    Battery

    Battery type

    (standard Mode)

    12V/7-9AH
    Quantity2pcs6pcs6pcs8pcs
    Recharging time4 hours recover to 90% capacity(Typical)
    Charging currentStandard Model :1A(max)
    Charging voltage27.3V±2%/41.0V±2%55.2V±2%/82.1V±2%82.1V±2%/109.4V±2%
    PHYSICAL
    Dimension(mm)350*145*230410*190*325
    Net weight(kg)18.69.019.010.025.011.0
    ENVIRONMENT
    Operation humidity20-95%RH@0-40℃(non-condensing)
    Noise level≤40dB(1m)
    MANAGEMENT
    Smart RS232 or USBRs232(default) USB(optional)
    Optional SNMPPower management from SNMP manager and web browser

    Feature

    1,True double-conversion

    2,Microprocessor control optimized reliablity

    3,Input power factor correction

    4,Output power factor is 0.9

    5,Wide input voltage (110V-300V)

    6,Converter mode available

    7,Generator compatible

    8,Smart SNMP works well with either USB or RS-232
