AGM Battery for Solar power systems, UPS systems, Telecommunications equipment Access control devices

12 volt sealed lead acid battery 200Ah AGM VRLA Regulated Lead Acid Battery rechargeable sealed lead acid battery

Application:

• Solar power systems

• UPS systems

• Telecommunications equipment

• Access control devices

• Electronic toys

• Electronic equipment require memory protecting

Features:

• 12 years design life, EUROBAT specification long life

• Absorbent Glass Mat (AGM) technology

• Extremely high cycle life and float life performance

• Wide range of operating temperature -20℃ to +50℃

• Delivered ready for use at 100% of its nominal capacity

• Easy for installation, maintenance free operation

• Shock resistant ABS flame retardant container and lid

• UL, CE, ISO9001 recognized component

• Non-hazardous cargo for ground, sea and air transport

• Computer designed lead, calcium tin alloy grid for high power density

•

  Structure: compact design, shorter internal connectors between cells, thus low internal resistance
  Plate: Pasted flat type, with patent formula of AM
  Terminal: Two or more types terminals are convenient for selection
  Vent system: Gas can be vented through flame arrester
  Separator: Using improved AGM separator, make lower resistance higher assembling pressure to increase cycle life
  Battery case: Made of high strength ABS and UL94-V0 is optional
  Terminal sealing: Double sealing technics(mechanical+epoxy gule)

Specification

Series	Model	Capacity	Weight	Terminal	Size(L*W*H)
GEL Series	GT12-26G	26	8.1	F13(M5)	166*175*125(125)
GEL Series	GT2-100G	100	5.6	F10(M8)	171*72*206(206)
GEL Series	GT6-100G	100	16.5	F14(M8)	194*170*205(210)
GEL Series	GT6-150G	150	23.5	F12(M8)	260*180*247(252)
GEL Series	GT6-180G	180	26.5	F12(M8)	306*168*222(227)
GEL Series	GT6-200G	200	29	F14(M8)	322*177.5*226(247)
GEL Series	GT6-200SG	200	30	F12(M8)	260*180*247(252)
GEL Series	GT6-225G	225	32	F14(M8)	322*177.5*226(247)
GEL Series	GT6-225SG	225	32	F14(M8)	243*187.5*275(275)
GEL Series	GT6-280G	280	41.7	F14(M8)	295*178*346(364)
GEL Series	GT6-310G	310	44.5	F14(M8)	295*178*346(364)
GEL Series	GT6-335G	335	45.5	F14(M8)	295*178*346(364)
GEL Series	GT12-33G	33	10.2	F11(M6)	195*130*159(180)
GEL Series	GT12-40G	40	13.2	F11(M6)	198*166*171(171)
GEL Series	GT12-55G	55	17	F11(M6)	229*138*210(235)
GEL Series	GT12-65G	65	21	F11(M6)	350*167*180(183)
GEL Series	GT12-70G	70	22.5	F11(M6)	350*167*180(183)
GEL Series	GT12-60G	60	20.5	F11(M6)	260*169*210(235)
GEL Series	GT12-70SG	70	21.5	F11(M6)	260*169*210(235)
GEL Series	GT12-75G	75	23.5	F11(M6)	260*169*210(235)
GEL Series	GT12-75SG	75	22.5	F11(M6)	350*167*180(183)
GEL Series	GT12-80G	80	23.5	F11(M6)	260*169*210(235)
GEL Series	GT12-80SG	80	24	F12(M8)	328*172*222(222)
GEL Series	GT12-85G	85	26	F12(M8)	306.5*168.5*210(235)
GEL Series	GT12-90G	90	28.5	F12(M8)	306.5*168.5*210(235)
GEL Series	GT12-100G	100	30	F12(M8)	328*172*222(222)
GEL Series	GT12-120G	120	35.5	F12(M8)	407*177*225(225)
GEL Series	GT12-134G	134	41.5	F12(M8)	340*173*280(285)
GEL Series	GT12-145G	145	44	F12(M8)	340*173*280(285)
GEL Series	GT12-150G	150	44.5	F12(M8)	483*170*240(240)
GEL Series	GT12-160SG	160	48	F12(M8)	483*170*240(240)
GEL Series	GT12-160G	160	50	F12(M8)	530*209*214(219)
GEL Series	GT12-180G	180	53	F12(M8)	530*209*214(219)
GEL Series	GT12-200G	200	60	F10(M8)	522*240*219(240)
GEL Series	GT12-225G	225	65	F10(M8)	522*240*219(240)
GEL Series	GT12-230G	230	67	F12(M8)	521*269*203(208)
GEL Series	GT12-260G	260	74	F14(M8)	520*268*220(225)
GEL Series	GT2-200G	200	14	F10(M8)	171*111*366(366)
GEL Series	GT2-250G	250	17.5	F10(M8)	171*150*365(365)
GEL Series	GT2-300G	300	19	F10(M8)	171*150*365(365)
GEL Series	GT2-350G	350	24.5	F10(M8)	211*176*329(367)
GEL Series	GT2-400G	400	26	F10(M8)	211*176*329(367)
GEL Series	GT2-450G	450	29	F10(M8)	211*176*329(367)
GEL Series	GT2-500G	500	30.5	F10(M8)	242*172*329(366)
GEL Series	GT2-600G	600	37	F10(M8)	302*175*328(365)
GEL Series	GT2-650G	650	40	F10(M8)	302*175*328(365)
GEL Series	GT2-750G	750	46	F10(M8)	411*175*327(368)
GEL Series	GT2-800G	800	50	F10(M8)	411*175*327(368)
GEL Series	GT2-1000G	1000	62	F10(M8)	479*175*327(368)
GEL Series	GT2-1200G	1200	74	F10(M8)	479*175*327(368)
GEL Series	GT2-1500G	1500	96	F10(M8)	401*352*338(383)
GEL Series	GT2-2000G	2000	126.5	F10(M8)	490*349*338(383)
GEL Series	GT2-2500G	2500	171	F10(M8)	712*351*338(383)
GEL Series	GT2-3000G	3000	193	F10(M8)	712*351*338(383)

G-Tech Power Co., Ltd. was established in 2002, located at Foshan, Guangdong province. We are a professional manufacturer of high quality UPS (Uninterruptible Power Systems) in China. We specialize in developing, manufacturing and operating the most reliable, manageable and the safest UPS, inverter and AVR (voltage regulator) products.

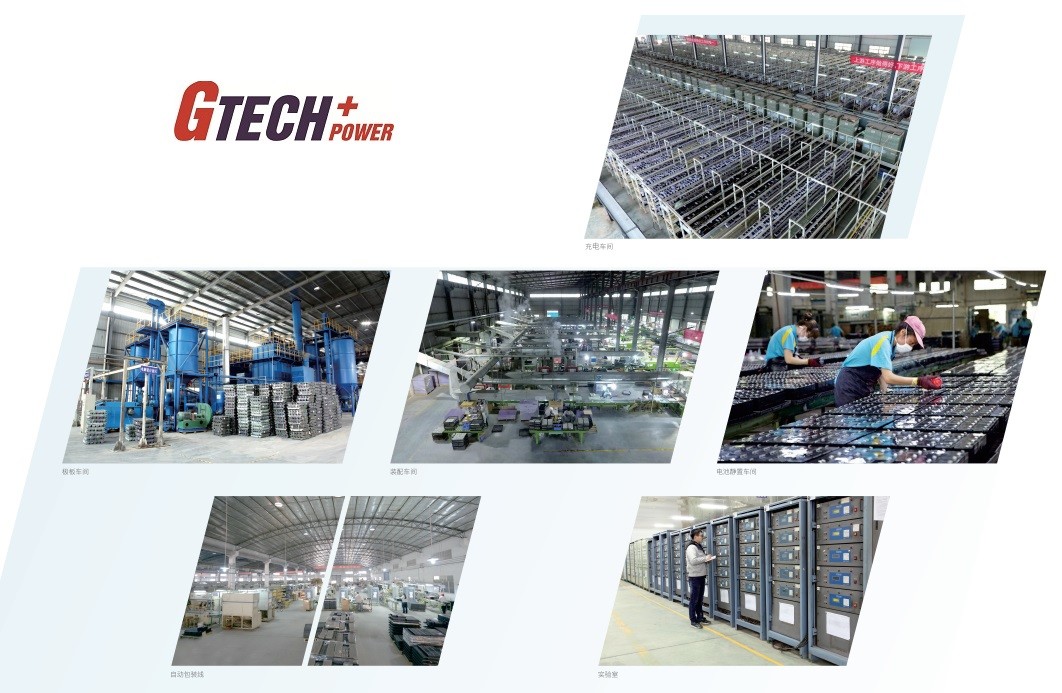

The factory covers a working area of nearly 20,000 square meters, has more than 500 professional staff (including 30 R&D personnel) and 33 sets of fully automatic SMT lines, more than 10 sets of automatic insertion equipment, ICT PCB testing equipment, ATE automatic testing center and aging workshop for all products.

OEM services are provided for customers in many areas, such as South America, Europe, Russia, India, Africa and some other countries and regions. We are always qualifying ourselves in order to meet the requirements of customers, and we gain more repeat orders and admiration from them.

After 20 years of efforts, we have been extended to more and more consumers. Our products are widely used in finance, securities, energy, telecommunications, transportation, communications, traffic, industrial enterprises, data center and home usage by personal purpose.

We warmly welcome friends from all over the world to explore and negotiate with us, To build a mutual benefit and win-win friendly cooperate relationship!
